FDI-L60 Bullet & Forced Entry Resistant Louver System
AMCA Standard 500-L-99 Air Performance - Pressure
Drop Test Results now available. Tests were conducted by Air Movement
and Control Association International, Inc.
Features
- Designed to Meet 60-Minutes Forced Entry Protection
- Multi-Impact High Power Rifle Resistant
- Heavy Duty Steel Construction
- Louver and Frame Shipped Loose for Ease of Handling
- Opaque Only
DOS Codes & Model Numbers:
DOS 2133 GPL-60R-FDI-01
Product Description

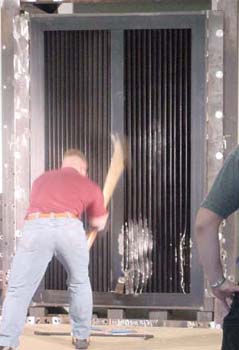

The FDI-L60 Forced Entry Resisting Louver System is capable of resisting 60
minutes of forced entry assault and defeating multiple impacts of 7.62mm NATO
and 5.56mm projectiles as defined by applicable U.S. Government Standards.
Basic Use
This louver system is used to provide protection in those areas susceptible
to mob or terrorist attacks. Applications are likely to be at safe haven rooms
where prolonged protection is required. The primary application of louvers is
areas where ventilation is required, such as generator room walls.
Limitations
This louver has been designed to meet the rigid specifications developed by
the U.S. Government for 60-minute forced entry and high power rifle impact. It
is recommended that each end user determine the ballistic and forced entry
threat and choose the appropriate product to meet and resist that threat.
Applicable Standard
- DOS SD.STD-01.01 (Rev. G amended)
Specifications/Construction
Louver construction:
Louvers are constructed of ballistic steel plates and ¾” round.
Louver Frame
Construction: Louver frame assembly is
constructed of steel tubes and plates. Framing dimensions are 3¼” wide x 10”
deep. Louver frames are completely fabricated at factory and shipped with
louvers loose. All louvers are pre-tested for fit to ease field installation.
All joint connections are welded to provide a rigid assembly when installed. The
louver stop is built into the frame. Frames are predrilled to accept ½”
anchors 12” on center. Shims are provided to take up a space at each anchor.
Subframes: To meet forced entry requirements of DOS SD.STD-01.01 (Rev. G
amended), steel tube subframes ¼” wall thickness minimum, must be attached to
concrete or masonry with Hilti® Epoxy Anchoring System. An acceptable
alternative is the use of steel embeds, ½” thick minimum. These systems are
included as options in our product line.
Finish: All Louvers and frames are furnished prime painted, ready for
final finish in field. Options: Factory can apply polyurethane enamel; link to color chart is available on the main page.
Weights and Measurements
Standard Louver:
Louver Thickness: 7”
Frame Depth: 10”
Louver Size: 24” x 84” max. / panel
(larger sizes are multiple panels joined by steel mullion)
Shipping Weight: 100 lbs / sq. ft.
|
