FDI Fabricates a variety of products that have been independently tested and US Government approved.  Our Product line includes:


  • High Power Rifle (7.62mm & 5.56mm) Bullet Resistant Doors, Windows and Louvers
  • 5 Minute Forced Entry Protection Doors, Windows and Louvers
  • High Power Rifle  (7.62mm & 5.56mm) Resistant & 15 Minute Forced Entry Protection Doors,  Door Pair, Windows and Louvers
  • Multi-Impact High Power Rifle Resistant & 60 Minute Forced Entry Protection Doors, Door Pairs and Louvers
  • Multi-Impact & Forced Entry Resistant Fixed & Transaction Windows








15 Minute FE/BR

The FDI15M and FDI-NGC15M Forced Entry Resisting Door Systems are capable of resisting 15 minutes of forced entry assault and defeating multiple impacts of 7.62mm NATO and 5.56mm projectiles as defined by applicable U.S. Government Standards.

Features
  • Provides 15 Minute Forced Entry Protection
  • High power rifle resistant, 7.62mm & 5.56mm
  • Glazing easily field replaceable
  • FDI-NGC15M meets same ballistic and F/E requirements without the aid of conventional gap covers
  • Single vision, single w/ deal tray, double vision, opaque

DOS Codes and Model Numbers

FDI15M

  • w/Vision - DOS 1123 GDT-15R-FDI-01
  • Opaque - DOS 2123 GDO-15R-FDI-01

FDI-NGC15M

  • w/Vision - DOS 1123 GDT-15R-FDI-02
  • Opaque - DOS 2123 GDO-15R-FDI-01A
  • W/Vision and Deal Tray - 1123 GDX-15R-FDI-01

Basic Use

This door system is used to provide protection in those areas susceptible to mob or terrorist attacks. Applications are likely to be at main security access control points and at other designated egress points.

Limitations

This door has been designed to meet the high power rifle and 15-minute forced entry requirements as set forth in DOS SD-STD-01.01, Rev.G (amended). It is recommended that each end user determine the forced entry threat and choose the correct product to meet and resist that threat.

Specifications/Construction

 Door construction:  Doors and frames are full flush construction of ballistic steel plates and 1 ½” steel tube.  Vertical jambs and header contain bullet-resisting material equal to protection level of the door.

 Door Frame Construction:  Door frame assembly is constructed of steel tubes.  Framing dimensions are 1 ¾” wide x 5” deep.  Door frames are completely fabricated at factory and shipped with doors attached.  All doors are pre-tested for all locking functions, clearances, and ease of operation, to ease field installation.  All joint connections are welded to provide a rigid assembly when installed.  The doorstop is built into the frame.  Frames are predrilled to accept ½” anchors 12” on center.  Shims are provided to take up a space at each anchor.  Wiring diagrams are shipped enclosed in the hardware packages.

 Hardware Assembly:  Each door is equipped as follows:

  1. Door Closer (LCN 4041 CUSH)
  2. (2) Forced Entry Locks (Adams Rite 1850S w/ 15tt Thumbturns)
  3. 4 ea Stanley CB199 NRP 5” x 4 ½” concealed bearing hinges
  4. Aluminum Threshold (Pemko 177AV36)
  5. Weather Stripping (Pemko SS88D17)

Optional Hardware:  Refer to the SHW group page for additional hardware information. You must select a lockset, pull handle, or panic device that suits your application. Most hardware is shipped pre-assembled with the door unit.

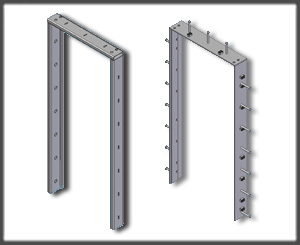

Subframes:  To meet forced entry requirements of DOS SD.STD-01.01 (Rev. G amended), steel tube subframes  ¼” wall thickness minimum, must be attached to concrete or masonry with Hilti® Epoxy Anchoring System.  An acceptable alternative is the use of steel embeds, ½” thick minimum.  These systems are included as options in our product line.

Finish:  All doors and frames are furnished prime painted, ready for final finish in field.  Options: Factory can apply polyurethane enamel; color chart is available upon request. Doors can also be fitted with various types of architectural metals.

Glazing:  Glazing materials shall be of a type approved by H.P. White Laboratory, Inc. for forced-entry resistance.  Size to be limited to 20” x 30” vision area.  Glazing is replaceable without removing the door from the frame.

 Applicable Standard

  •  DOS SD.STD-01.01 (Rev. G amended)

 Weights and Measurements

Standard Door:

Door Thickness:                      2”

Frame Depth:                          5 ½” (FDI15M); 5” (FDI-NGC15M)

Door Size:                               36” x 84”

Frame Size:                             40” x 86” (FDI15M); 39 ½” x 86” (FDI-NGC15M)

Rough Opening:                      41 ½” x 86 ¾” (FDI15M); 40” x 86 ¼” (FDI-NGC15M)

Gap Cover Dimension              41” x 86 ½” (FDI15M only)

Shipping Weight:                    1500 lbs






Sub-frames or Embeds available for installation in existing or new rough openings.
